精密运算放大器
| Part Number | Amplifiersper Package | Vos Max@25°C (uV) | TC of Vos Typ (uV/°C) | Iq/Amp Typ(uA) | Total Supply Voltage (V) | GBW Typ (MHz) | Slew Rate Typ(V/us) | Enoise 0.01Hz~10Hz (uVpp) | Enoise Typ@1kHz (nV/√Hz) | IB Typ (pA) | CMRR Typ (dB) | PSRR Typ (dB) | Rail-to -Rail I/O | Operating Temperature Range (℃) | Package |

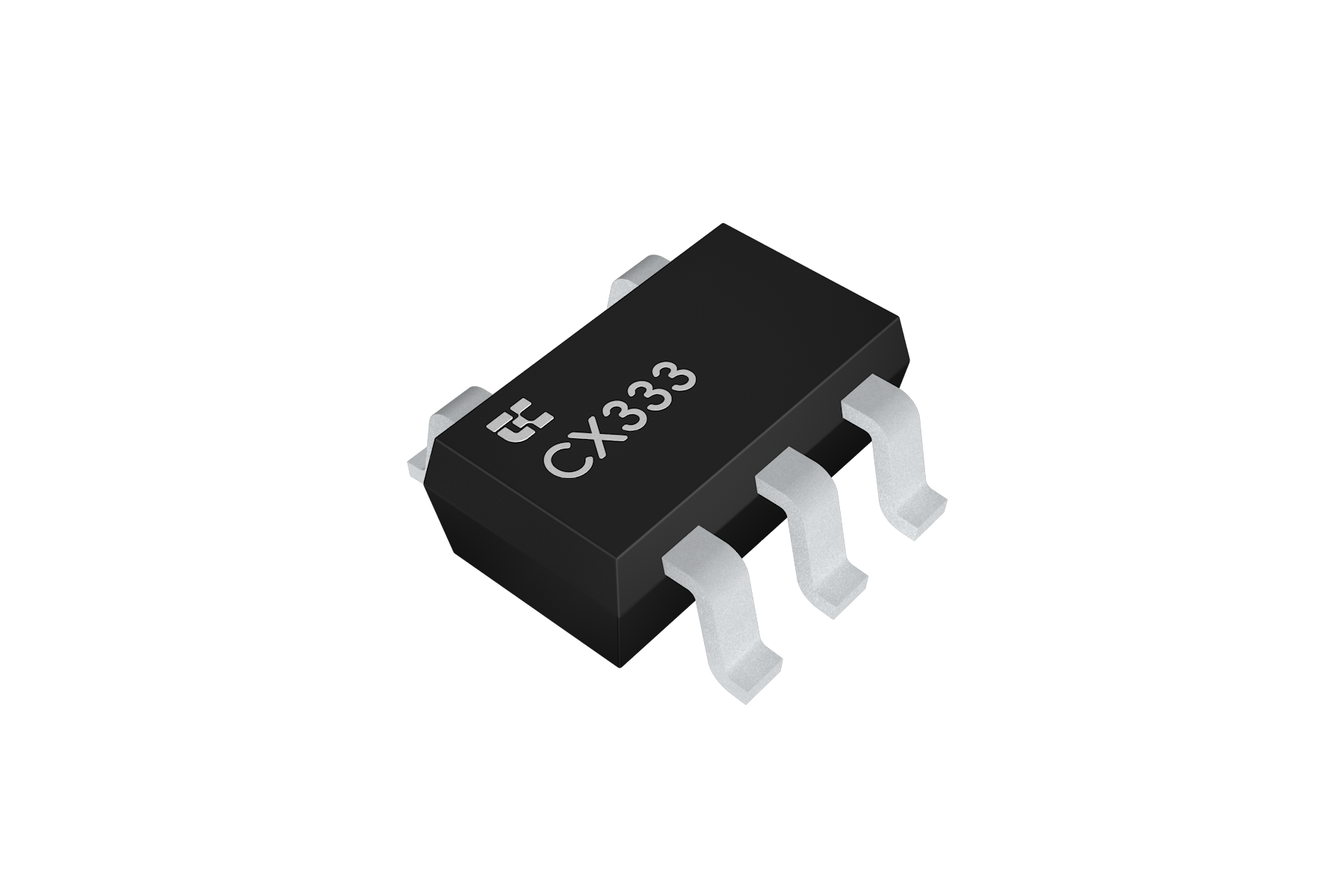

| CX333 | 1 | 2 | 0.02 | 15 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 50 | 1 | 110 | 120 | YES | -40~125 | SOT23-5 |
| CX333B | 1 | 2 | 0.02 | 15 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 50 | 1 | 110 | 120 | YES | -40~125 | SOT23-5 |

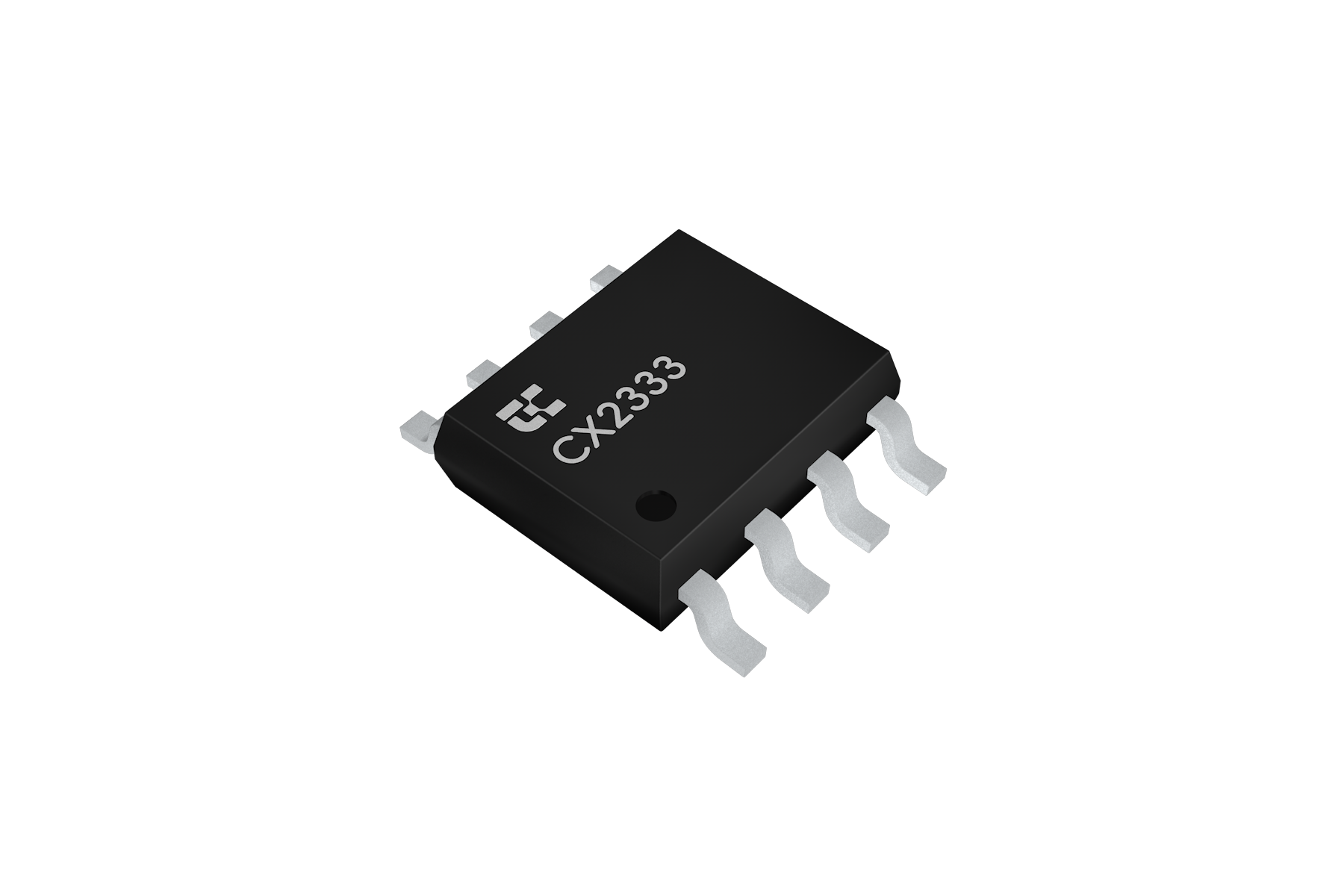

| CX2333 | 2 | 2 | 0.02 | 15 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 50 | 1 | 110 | 120 | YES | -40~125 | SOP8,MSOP8 |
| CX4333 | 4 | 2 | 0.02 | 15 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 50 | 1 | 110 | 120 | YES | -40~125 | SOP14,TSSOP14 |
| CX8551 | 1 | 2 | 0.005 | 470 | 1.8-5.5 | 1.8 | 0.9 | 1 | 40 | 1 | 125 | 120 | YES | -40~125 | SOT23-5 |
| CX8551B | 1 | 2 | 0.005 | 470 | 1.8-5.5 | 1.8 | 0.9 | 1 | 40 | 1 | 125 | 120 | YES | -40~125 | SOT23-5 |

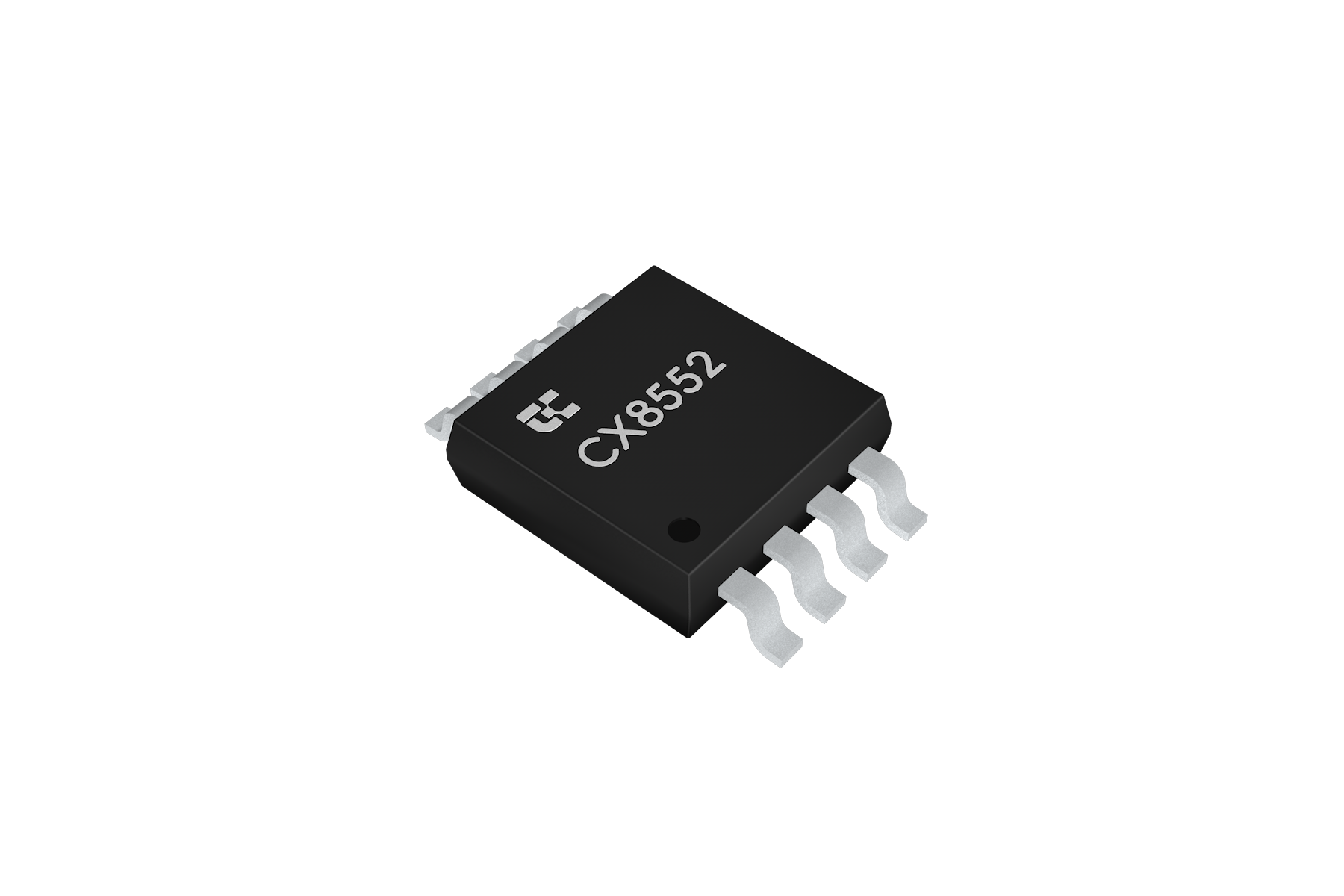

| CX8552 | 2 | 2 | 0.005 | 470 | 1.8-5.5 | 1.8 | 0.9 | 1 | 40 | 1 | 125 | 120 | YES | -40~125 | SOP8,MSOP8 |
| CX8554 | 4 | 2 | 0.005 | 470 | 1.8-5.5 | 1.8 | 0.9 | 1 | 40 | 1 | 125 | 120 | YES | -40~125 | SOP14,TSSOP14 |
| CX8111 | 1 | 20 | 0.05 | 25 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 55 | 1 | 110 | 120 | YES | -40~125 | SOT23-5 |

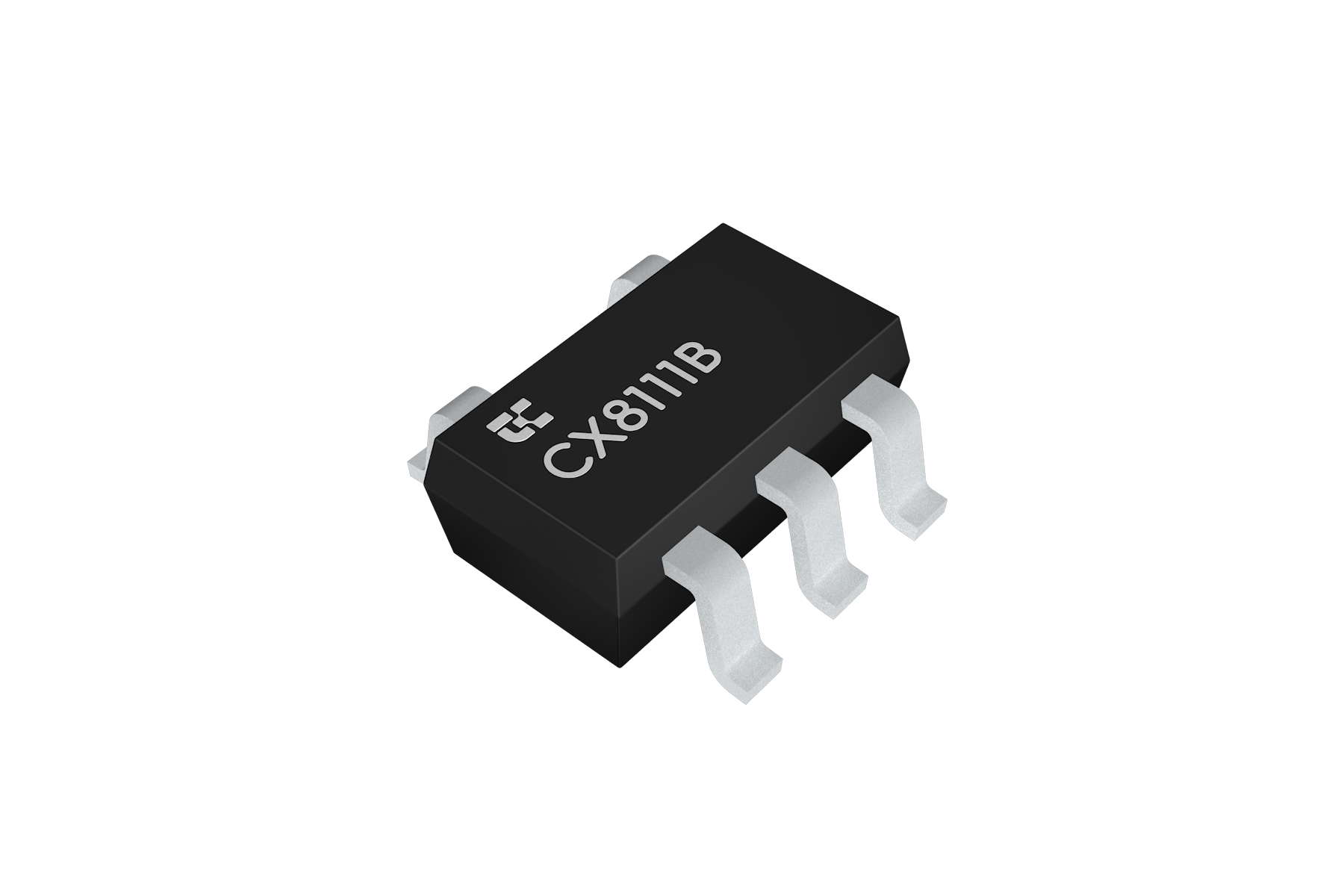

| CX8111B | 1 | 20 | 0.05 | 25 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 55 | 1 | 110 | 120 | YES | -40~125 | SOT23-5 |
| CX8112 | 2 | 20 | 0.05 | 25 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 55 | 1 | 110 | 120 | YES | -40~125 | SOP8,MSOP8 |
| CX8114 | 4 | 20 | 0.05 | 25 | 1.8-5.5 | 0.35 | 0.12 | 1.1 | 55 | 1 | 110 | 120 | YES | -40~125 | SOP14,TSSOP14 |
| CX8131 | 1 | 20 | 0.05 | 500 | 1.8-5.5 | 1.8 | 0.9 | 1 | 45 | 1 | 125 | 120 | YES | -40~125 | SOT23-5 |
| CX8131B | 1 | 20 | 0.05 | 500 | 1.8-5.5 | 1.8 | 0.9 | 1 | 45 | 1 | 125 | 120 | YES | -40~125 | SOT23-5 |
| CX8132 | 2 | 20 | 0.05 | 500 | 1.8-5.5 | 1.8 | 0.9 | 1 | 45 | 1 | 125 | 120 | YES | -40~125 | SOP8,MSOP8 |
| CX8134 | 4 | 20 | 0.05 | 500 | 1.8-5.5 | 1.8 | 0.9 | 1 | 45 | 1 | 125 | 120 | YES | -40~125 | SOP14,TSSOP14 |
| CX277 | 1 | 50 | 0.1 | 760 | 2.5-36 | 1 | 0.7 | - | 8 | 500 | 140 | 140 | - | -40~125 | SOT23-5 |
| CX2277 | 2 | 50 | 0.1 | 760 | 2.5-36 | 1 | 0.7 | - | 8 | 500 | 140 | 140 | - | -40~125 | SOP8,MSOP8 |
