高速运算放大器
| Part Number | Amplifiersper Package | GBW Typ (MHz) | Iq/Amp Typ(mA) | Total Supply Voltage (V) | Vos Max@25°C (mV) | Slew Rate Typ(V/us) | TC of Vos Typ (uV/°C) | Enoise Typ@1kHz (nV/√Hz) | IB Typ (pA) | PSRR Typ （dB） | CMRR Typ （dB） | Rail-to -Rail I/O | Operating Temperature Range (℃) | Package |

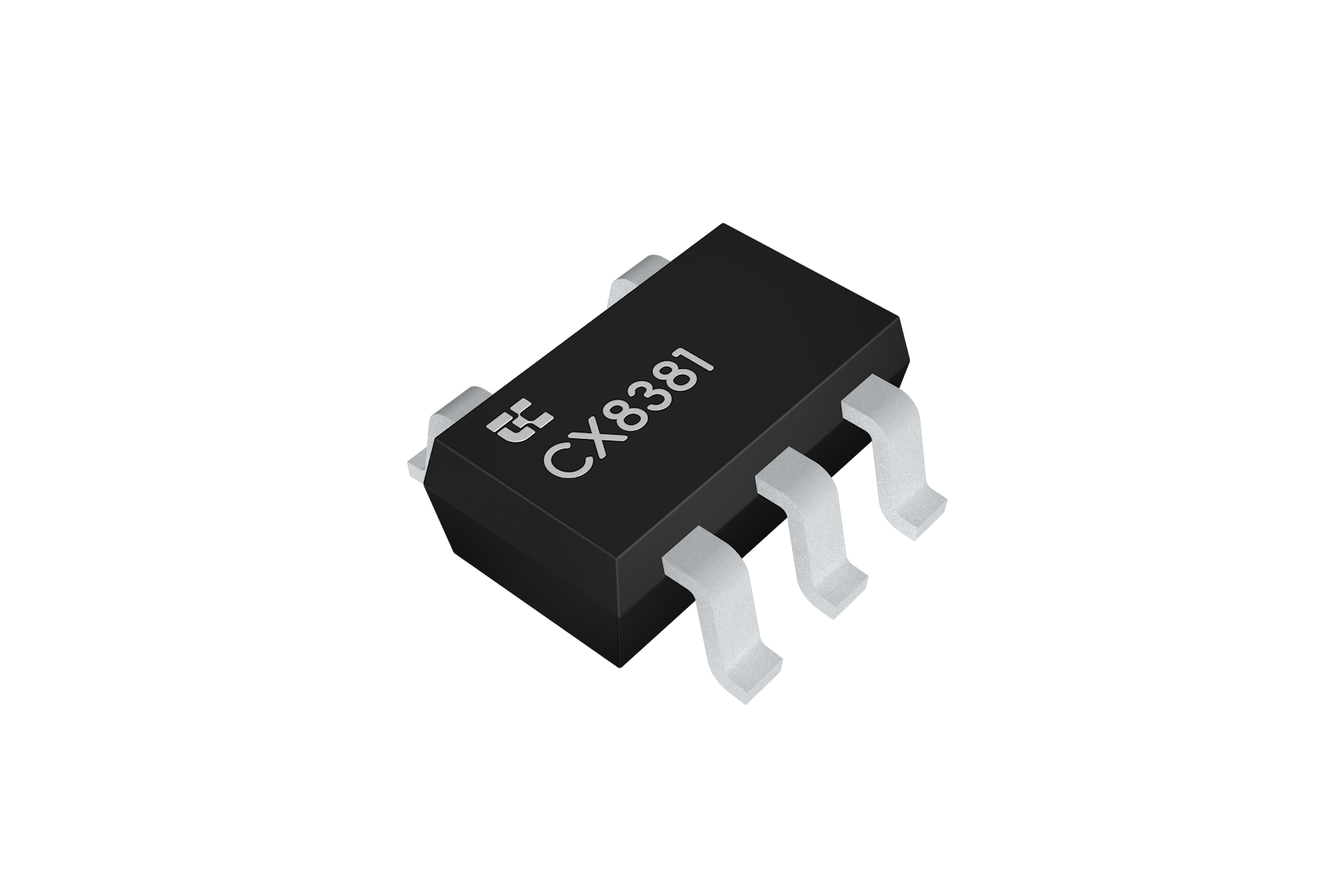

| CX8381 | 1 | 20 | 2.4 | 2.2-5.5 | 0.6 | 9 | 2 | 8 | 1 | 80 | 90 | YES | -40~125 | SOT23-5 |
| CX8381B | 1 | 20 | 2.4 | 2.2-5.5 | 0.6 | 9 | 2 | 8 | 1 | 80 | 90 | YES | -40~125 | SOT23-5 |

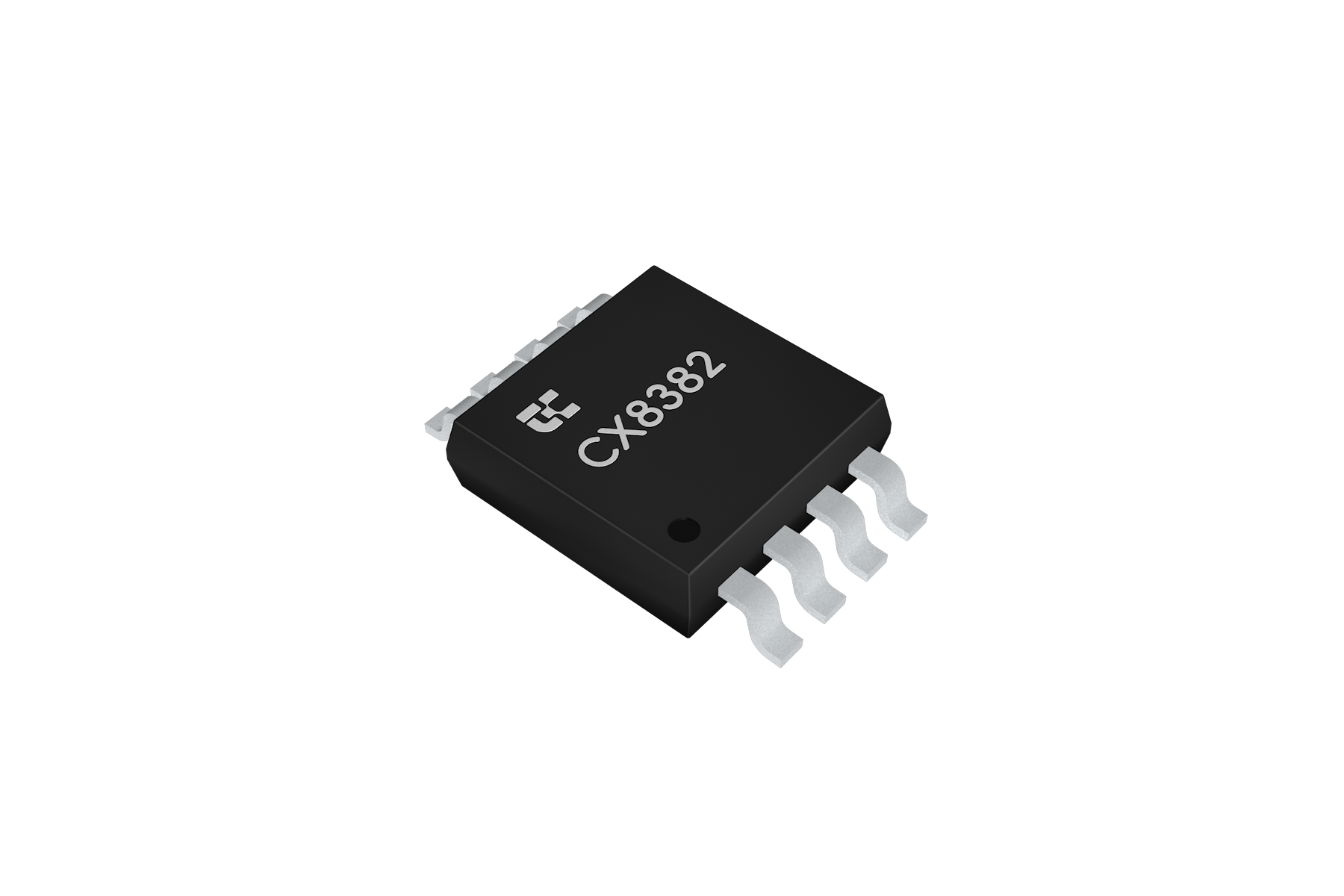

| CX8382 | 2 | 20 | 2.4 | 2.2-5.5 | 0.6 | 9 | 2 | 8 | 1 | 80 | 90 | YES | -40~125 | SOP8,MSOP8 |
| CX8384 | 4 | 20 | 2.4 | 2.2-5.5 | 0.6 | 9 | 2 | 8 | 1 | 80 | 90 | YES | -40~125 | SOP14,TSSOP14 |
| CX8221 | 1 | 30 | 2.6 | 2.7-5.5 | 1 | 16 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOT23-5 |
| CX8221B | 1 | 30 | 2.6 | 2.7-5.5 | 1 | 16 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOT23-5 |
| CX8222 | 2 | 30 | 2.6 | 2.7-5.5 | 1 | 16 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOP8,MSOP8 |

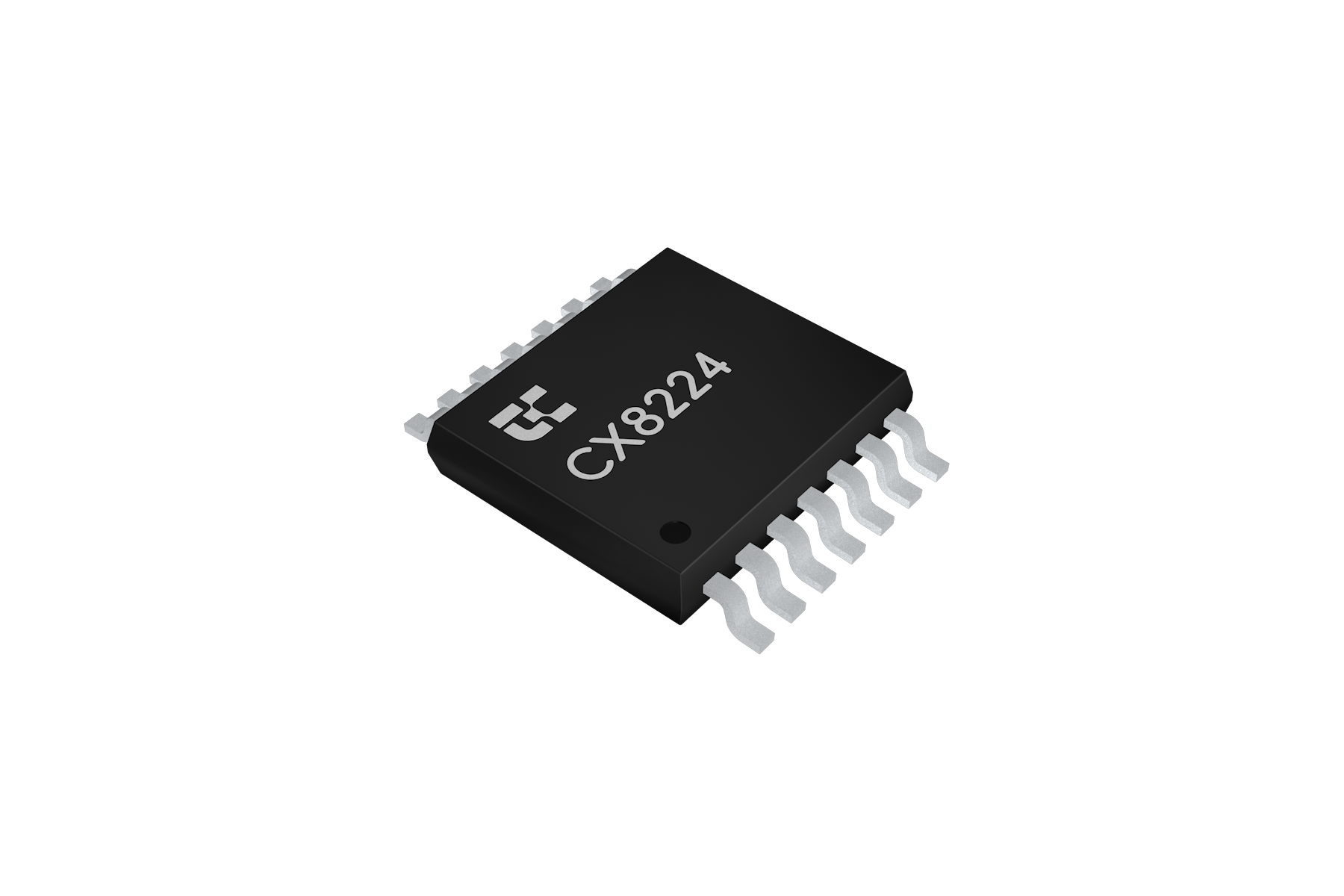

| CX8224 | 4 | 30 | 2.6 | 2.7-5.5 | 1 | 16 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOP14,TSSOP14 |
| CX8231 | 1 | 45 | 3.7 | 2.7-5.5 | 1 | 30 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOT23-5 |
| CX8231B | 1 | 45 | 3.7 | 2.7-5.5 | 1 | 30 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOT23-5 |

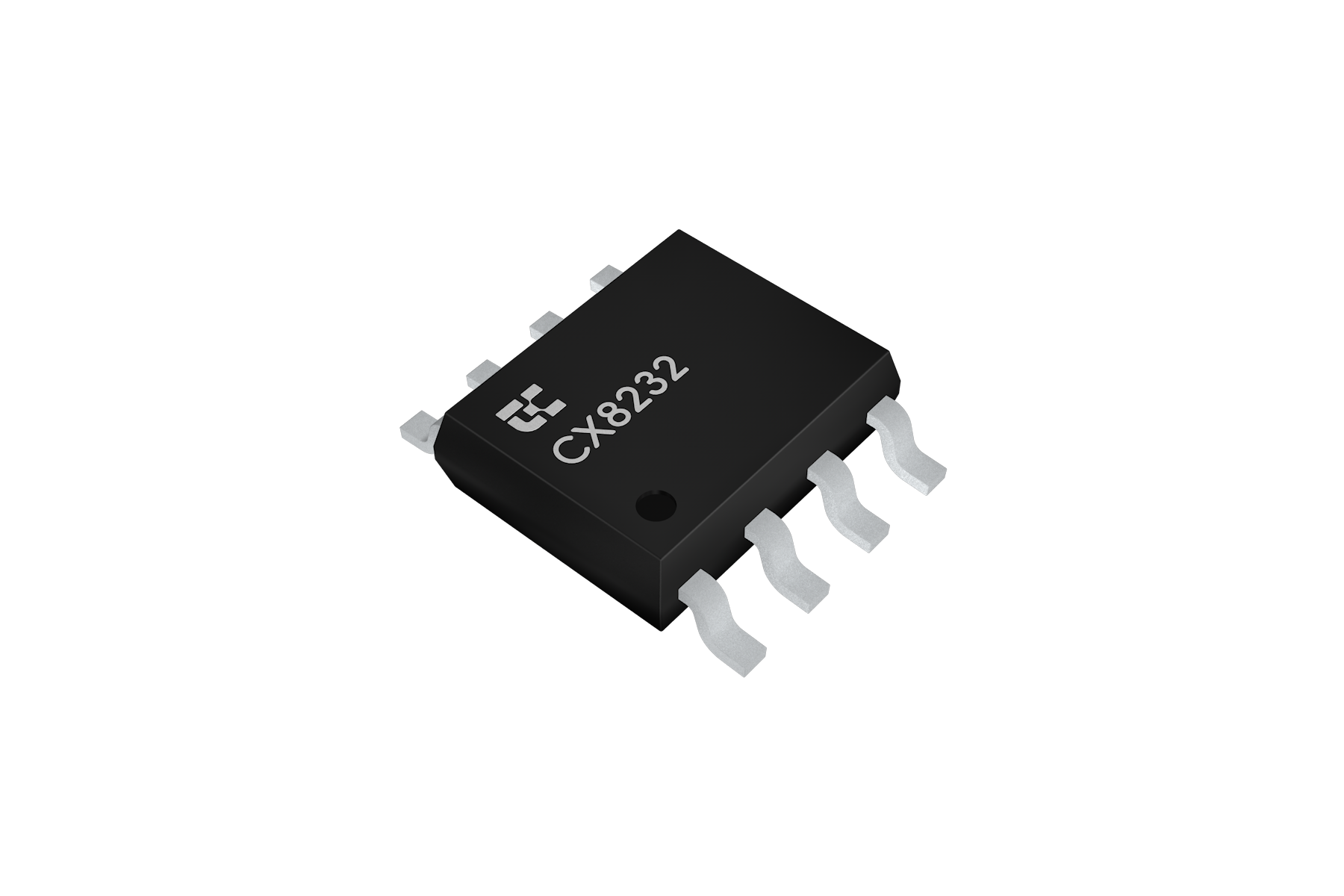

| CX8232 | 2 | 45 | 3.7 | 2.7-5.5 | 1 | 30 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOP8,MSOP8 |

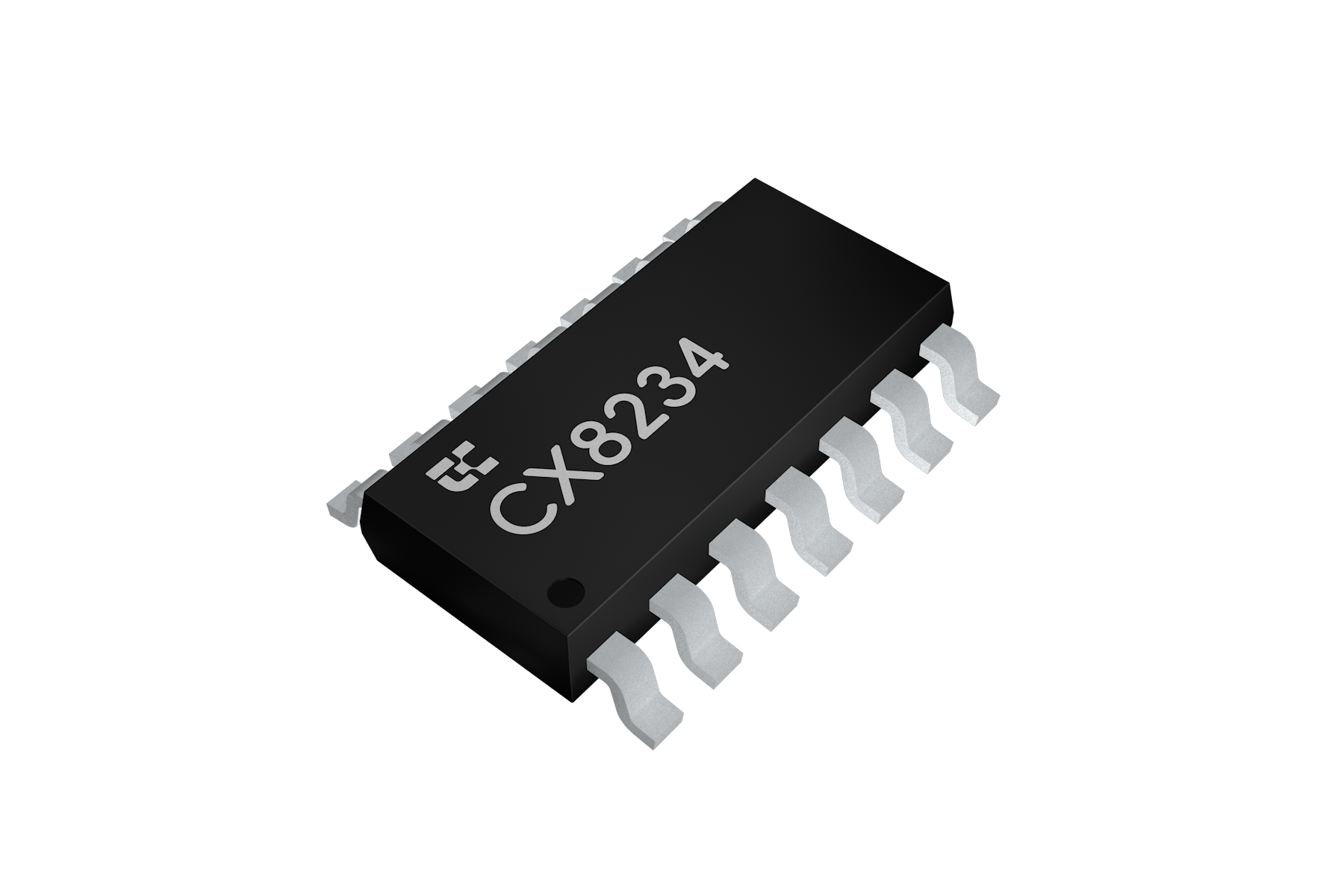

| CX8234 | 4 | 45 | 3.7 | 2.7-5.5 | 1 | 30 | 2 | 8 | 1 | 90 | 80 | YES | -40~125 | SOP14,TSSOP14 |
