高压运算放大器
| Part Number | Amplifiersper Package | Vos Max@25°C (mV) | Iq/Amp Typ(mA) | Total Supply Voltage (V) | GBW Typ (MHz) | Slew Rate Typ(V/us) | TC of Vos Typ (uV/°C) | Enosie Typ@1kHz (nV/√Hz) | IB Typ (nA) | CMRR Typ (dB) | PSRR Typ (dB) | Rail-to -Rail I/O | Operating Temperature Range (℃) | Package |
| CX321H | 1 | 3.5 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |
| CX321BH | 1 | 3.5 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |
| CX358H | 2 | 3.5 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOP8,MSOP8 |

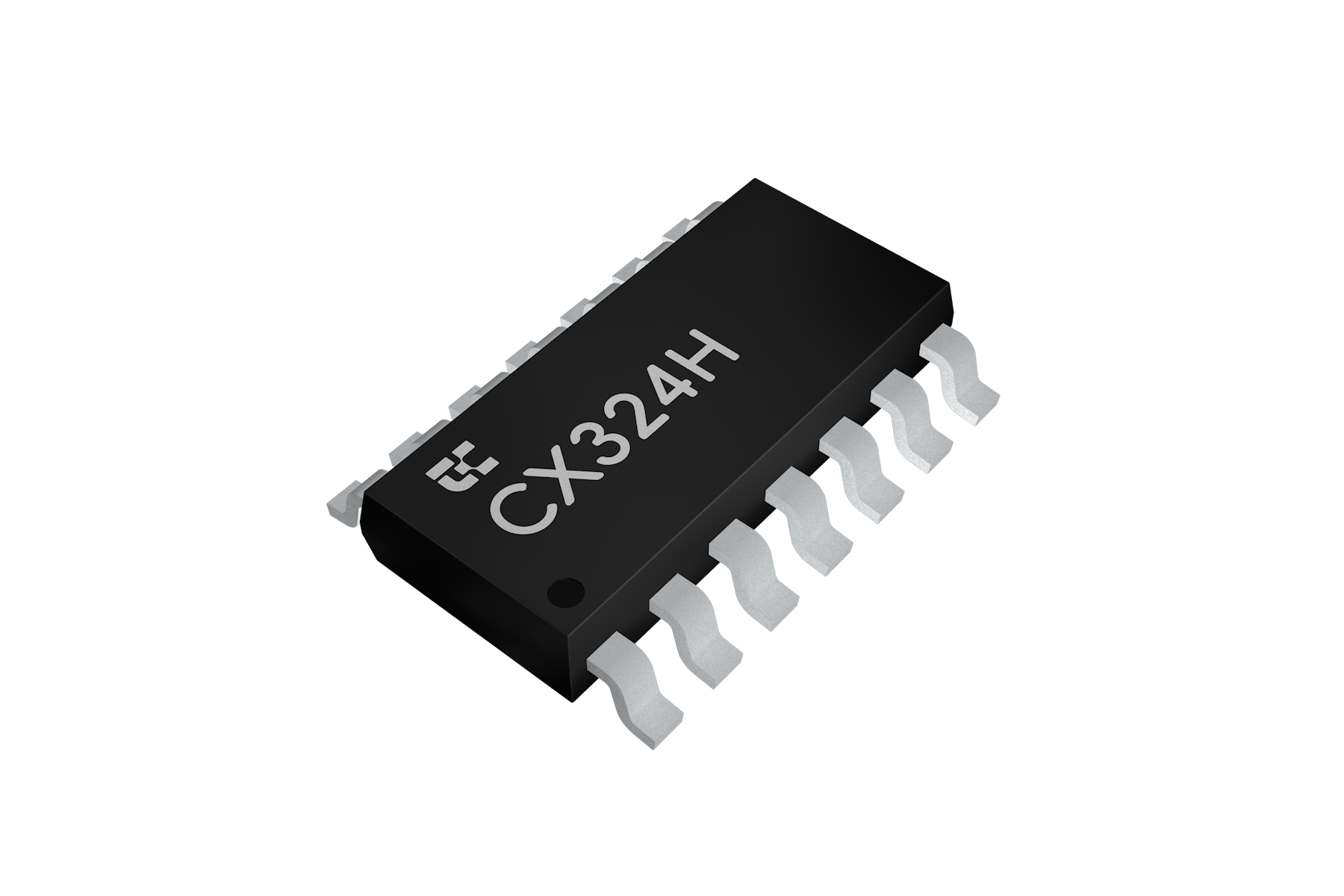

| CX324H | 4 | 3.5 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOP14,TSSOP14 |

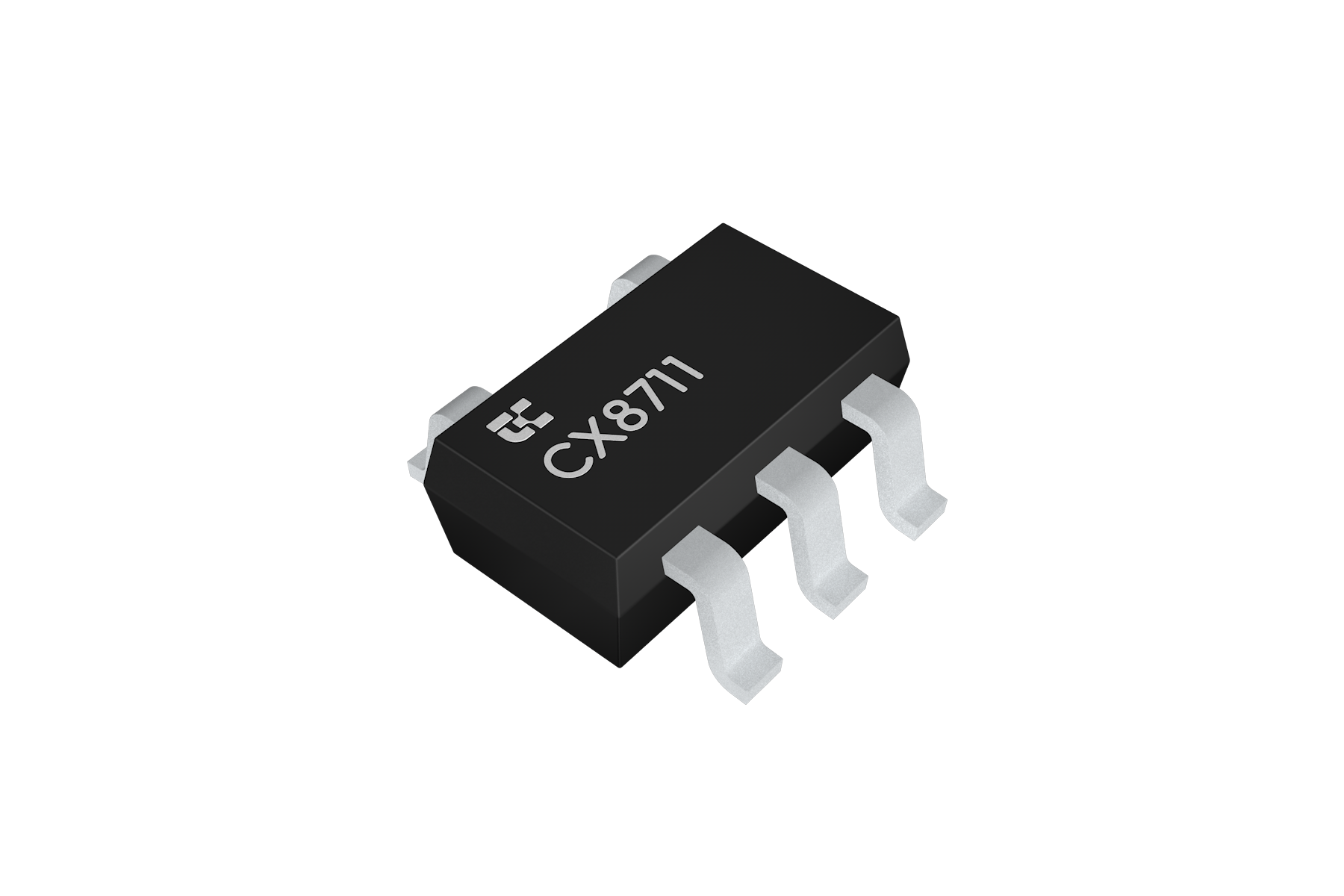

| CX8711 | 1 | 3.0 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |
| CX8711B | 1 | 3.0 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |

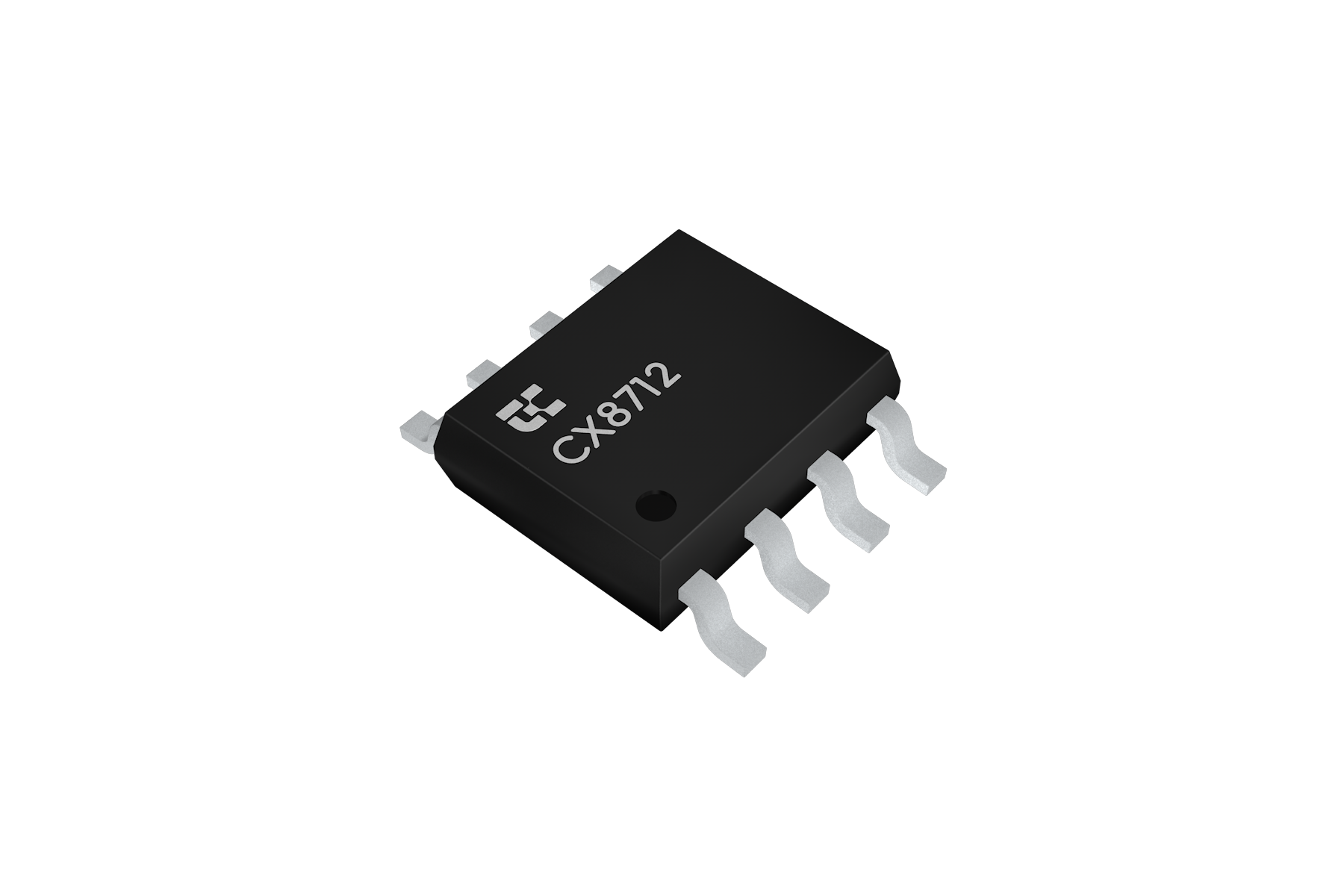

| CX8712 | 2 | 3.0 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOP8,MSOP8 |
| CX8714 | 4 | 3.0 | 0.2 | 3-36 | 1.3 | 0.7 | 0.5 | 55 | 10 | 100 | 100 | RRO | -40~125 | SOP14,TSSOP14 |
| CX8721 | 1 | 3.0 | 1 | 3-36 | 3.5 | 2.7 | 0.5 | 35 | 10 | 110 | 100 | RRO | -40~125 | SOT23-5 |
| CX8721B | 1 | 3.0 | 1 | 3-36 | 3.5 | 2.7 | 0.5 | 35 | 10 | 110 | 100 | RRO | -40~125 | SOT23-5 |
| CX8722 | 2 | 3.0 | 1 | 3-36 | 3.5 | 2.7 | 0.5 | 35 | 10 | 110 | 100 | RRO | -40~125 | SOP8,MSOP8 |
| CX8724 | 4 | 3.0 | 1 | 3-36 | 3.5 | 2.7 | 0.5 | 35 | 10 | 110 | 100 | RRO | -40~125 | SOP14,TSSOP14 |
| CX8731 | 1 | 3.0 | 1 | 3-36 | 7.5 | 7 | 0.5 | 30 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |
| CX8731B | 1 | 3.0 | 1 | 3-36 | 7.5 | 7 | 0.5 | 30 | 10 | 100 | 100 | RRO | -40~125 | SOT23-5 |
| CX8732 | 2 | 3.0 | 1 | 3-36 | 7.5 | 7 | 0.5 | 30 | 10 | 100 | 100 | RRO | -40~125 | SOP8,MSOP8 |

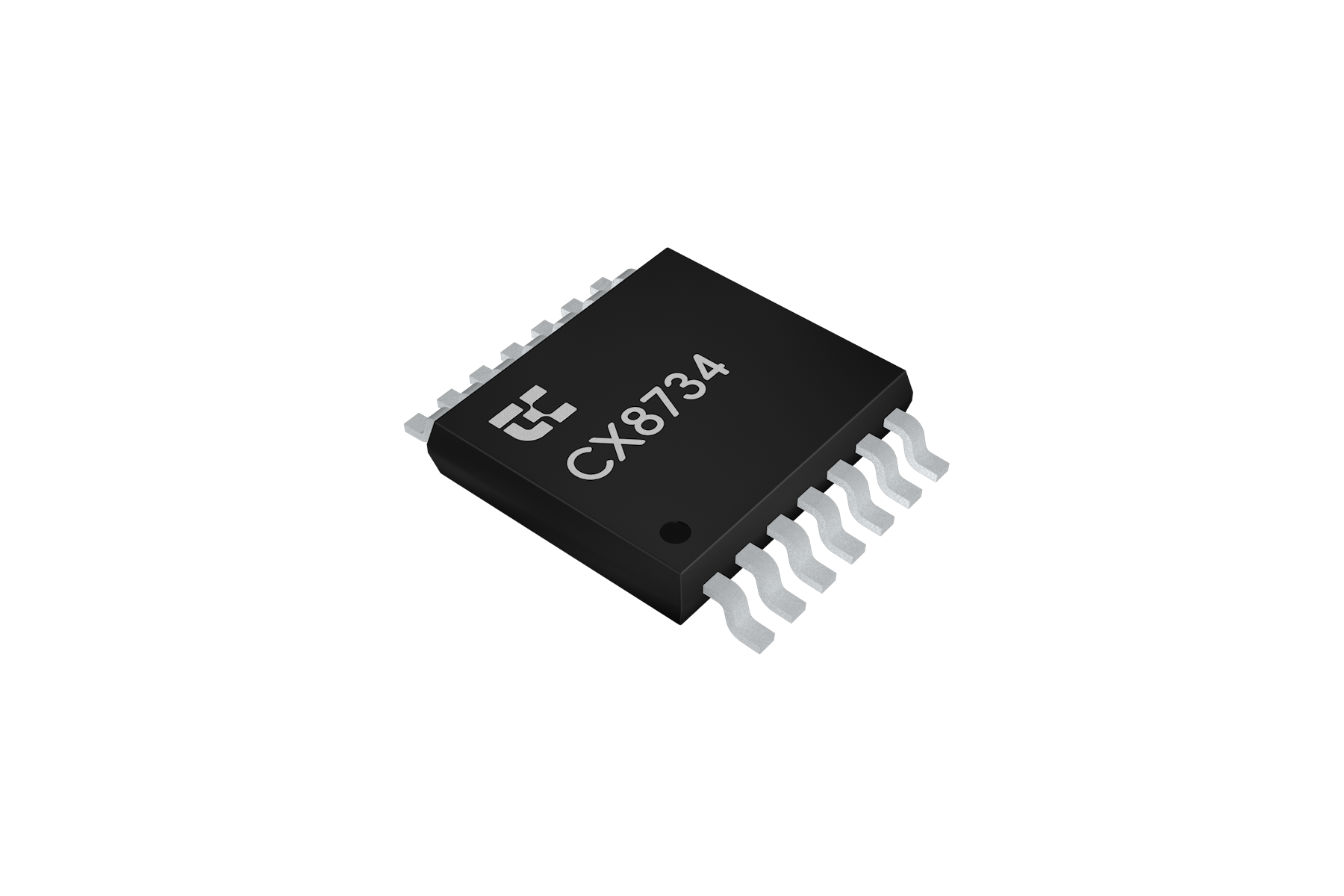

| CX8734 | 4 | 3.0 | 1 | 3-36 | 7.5 | 7 | 0.5 | 30 | 10 | 100 | 100 | RRO | -40~125 | SOP14,TSSOP14 |
| LM321 | 1 | 2.5 | 0.45 | 3-32 | 1.1 | 0.6 | 5 | 30 | 20 | 100 | 100 | - | -40~125 | SOT23-5 |
| LM358 | 2 | 7.0 | 0.35 | 3-30 | 1.1 | 0.6 | 7 | 30 | 20 | 100 | 100 | - | -40~85 | SOP8,MSOP8 |
| LM324 | 4 | 7.0 | 0.3 | 3-30 | 1.3 | 0.6 | 7 | 30 | 20 | 100 | 110 | - | -40~85 | SOP14,TSSOP14 |
| LM2904 | 2 | 7.0 | 0.3 | 3-32 | 1.1 | 0.6 | 7 | 30 | 20 | 100 | 100 | - | -40~125 | SOP8,MSOP8 |
| LM2902 | 4 | 7.0 | 0.3 | 3-32 | 1.3 | 0.6 | 7 | 30 | 20 | 100 | 110 | - | -40~125 | SOP14,TSSOP14 |
| TL072 | 2 | 6.0 | 1.4 | 8-36 | 3 | 13 | 18 | 18 | 0.03 | 100 | 100 | - | -40~125 | SOP8 |
| TL074 | 4 | 6.0 | 1.4 | 8-36 | 3 | 13 | 18 | 18 | 0.03 | 100 | 101 | - | -40~125 | SOP14 |
| TL082 | 2 | 6.0 | 1.4 | 8-36 | 3 | 13 | 18 | 18 | 0.03 | 100 | 102 | - | -40~125 | SOP8 |
| TL084 | 4 | 6.0 | 1.4 | 8-36 | 3 | 13 | 18 | 18 | 0.03 | 100 | 103 | - | -40~125 | SOP14 |
