纳安功耗运算放大器
| Part Number | Amplifiersper Package | Iq/Amp Typ(nA) | Total Supply Voltage (V) | GBW Typ (KHz) | Slew Rate Typ(V/ms) | Enoise Typ@0.1Hz~10Hz (μVpp) | Vos Max@25°C (mV) | TC of Vos Typ (uV/°C) | IB Typ (pA) | CMRR Typ (dB) | PSRR Typ (dB) | Rail-to -Rail I/O | Operating Temperature Range (℃) | Package |

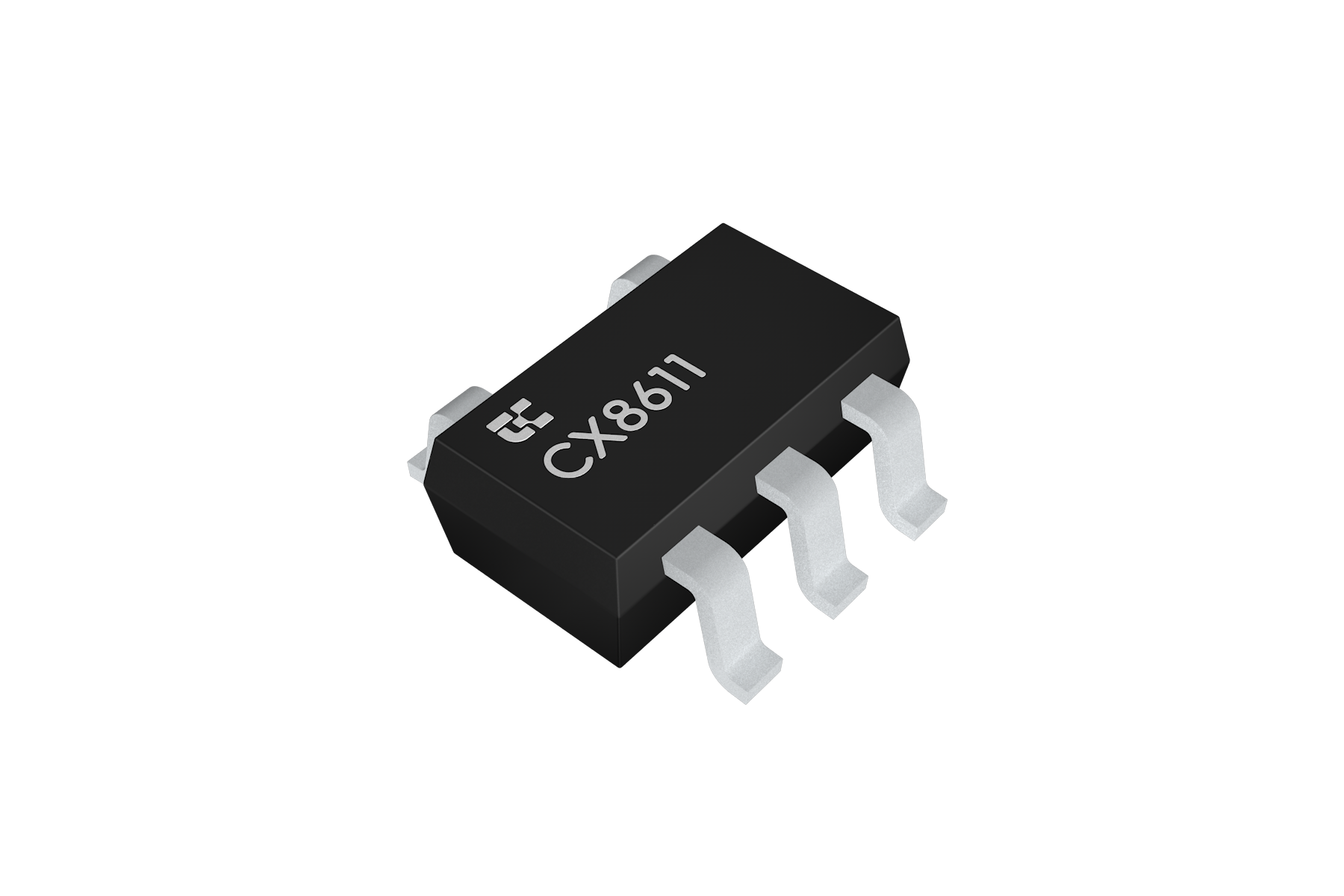

| CX8611 | 1 | 400 | 1.4-5.5 | 7 | 2.5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOT23-5 |
| CX8611B | 1 | 400 | 1.4-5.5 | 7 | 2.5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOT23-5 |

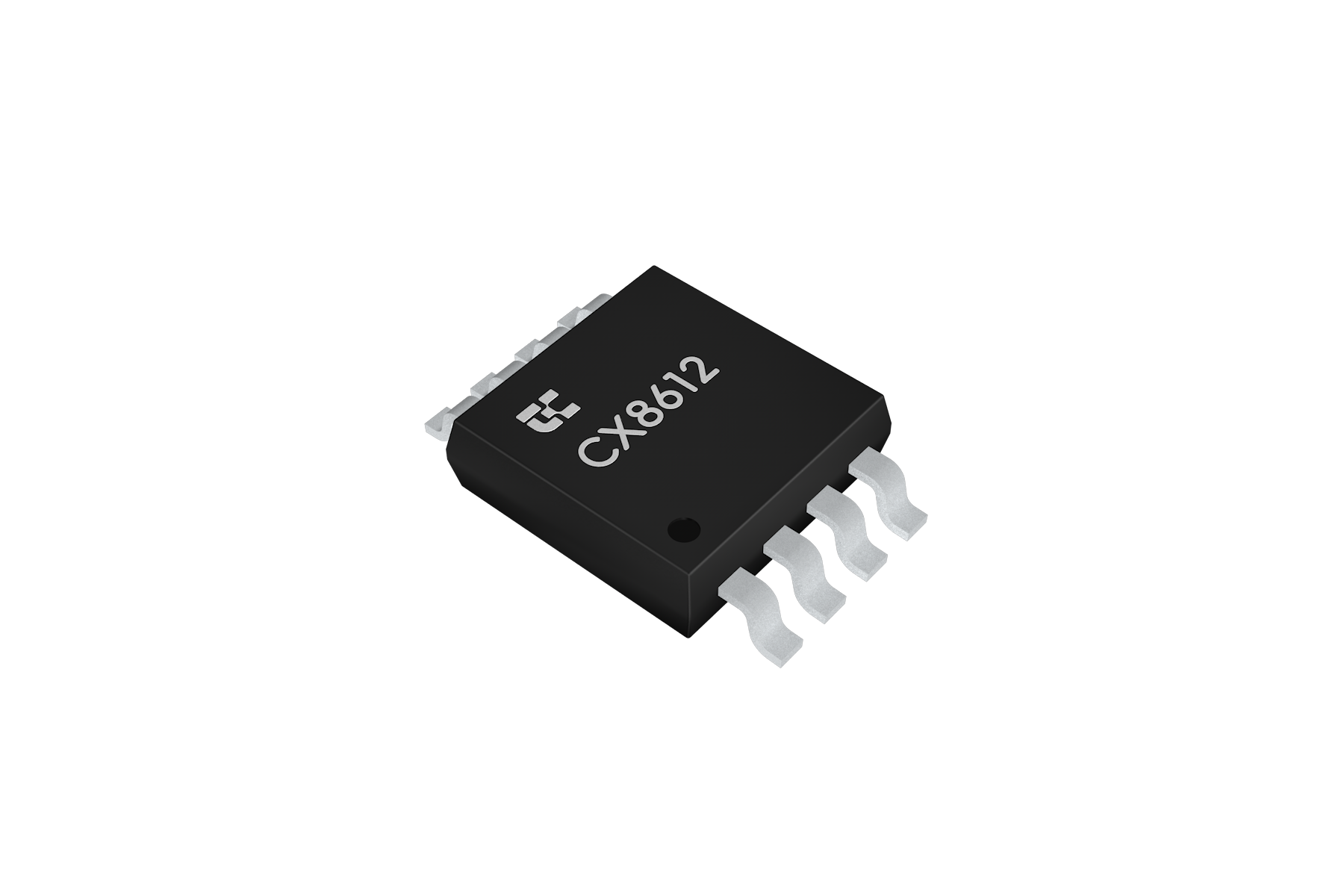

| CX8612 | 2 | 400 | 1.4-5.5 | 7 | 2.5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOP8,MSOP8 |
| CX8614 | 4 | 400 | 1.4-5.5 | 7 | 2.5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOP14,TSSOP14 |

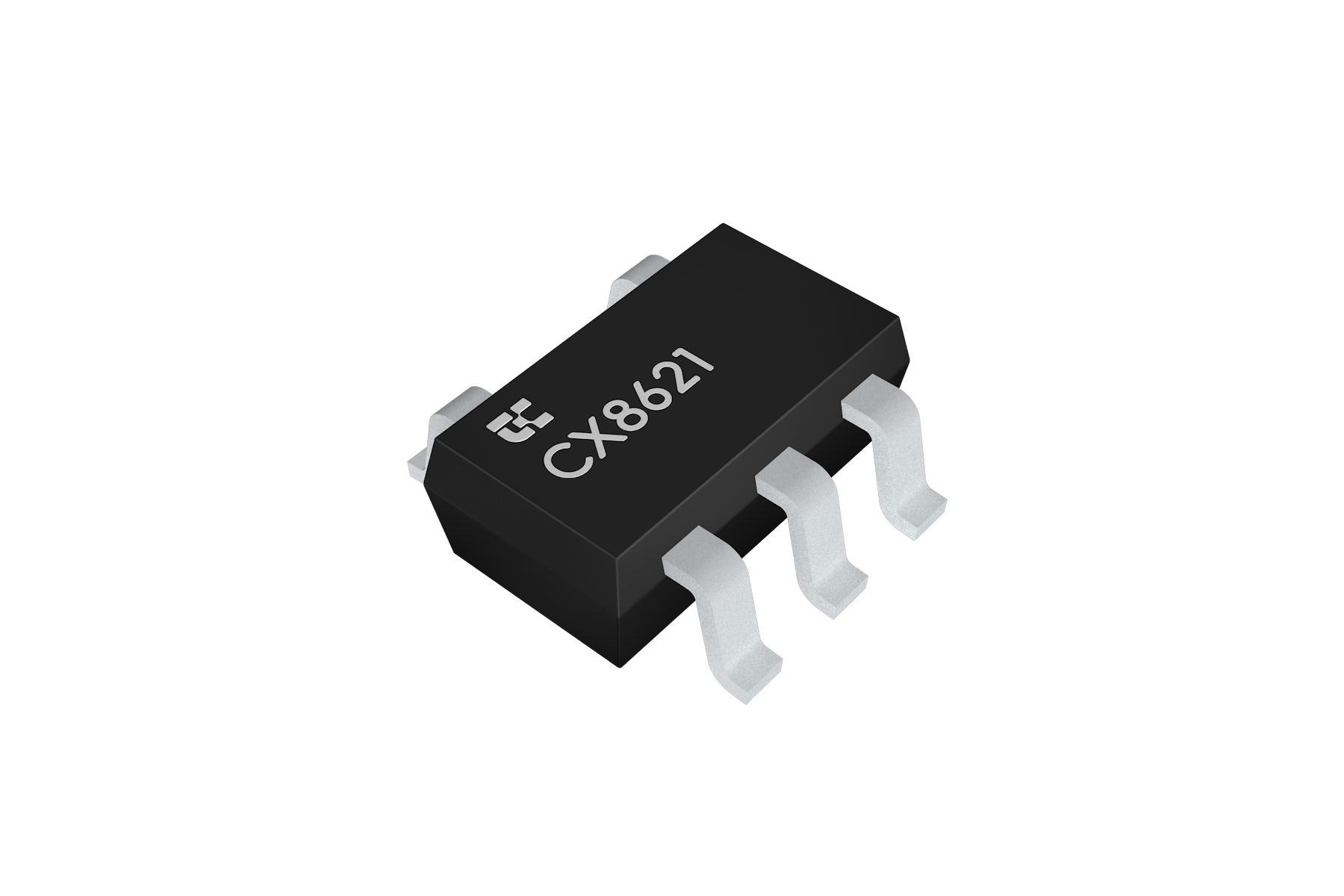

| CX8621 | 1 | 700 | 1.4-5.5 | 15 | 5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOT23-5 |
| CX8621B | 1 | 700 | 1.4-5.5 | 15 | 5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOT23-5 |
| CX8622 | 2 | 700 | 1.4-5.5 | 15 | 5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOP8,MSOP8 |

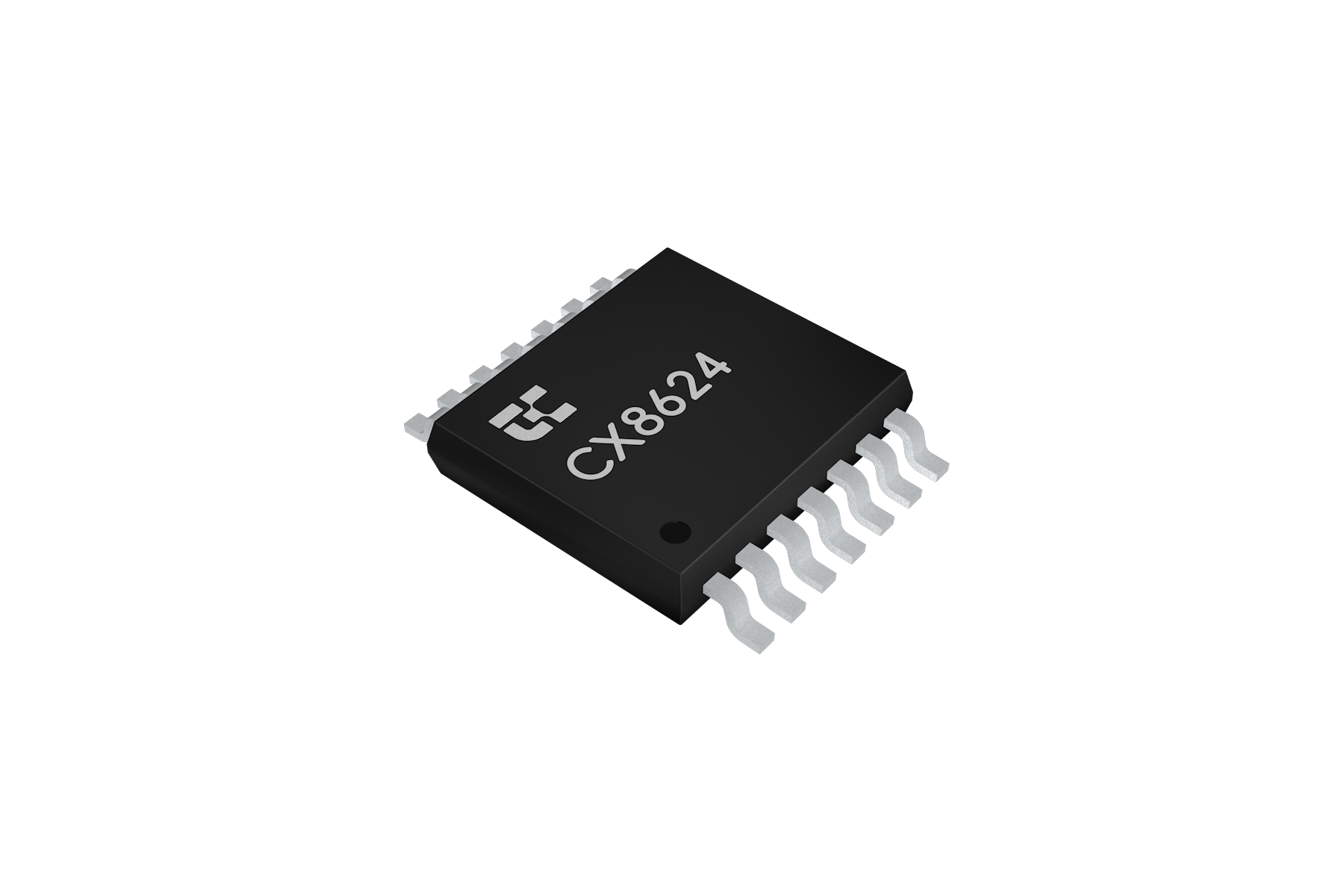

| CX8624 | 4 | 700 | 1.4-5.5 | 15 | 5 | 3.5 | 1.5 | 5 | 1 | 85 | 75 | YES | -40~125 | SOP14,TSSOP14 |
