通用运算放大器
| Part Number | Amplifiersper Package | Iq/Amp Typ(uA) | Total Supply Voltage (V) | GBW Typ (MHz) | Vos Max@25°C (mV) | Slew Rate Typ(V/us) | TC of Vos Typ (uV/°C) | Enosie Typ@1kHz (nV/√Hz) | IB Typ (pA) | CMRR Typ (dB) | PSRR Typ (dB) | Rail-to -Rail I/O | Operating Temperature Range (℃) | Package |
| CX8631 | 1 | 1.2 | 1.4-5.5 | 0.03 | 1.5 | 0.01 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8631B | 1 | 1.2 | 1.4-5.5 | 0.03 | 1.5 | 0.01 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8632 | 2 | 1.2 | 1.4-5.5 | 0.03 | 1.5 | 0.01 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |
| CX8634 | 4 | 1.2 | 1.4-5.5 | 0.03 | 1.5 | 0.01 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX8641 | 1 | 2.5 | 1.4-5.5 | 0.06 | 1.5 | 0.02 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8641B | 1 | 2.5 | 1.4-5.5 | 0.06 | 1.5 | 0.02 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8642 | 2 | 2.5 | 1.4-5.5 | 0.06 | 1.5 | 0.02 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |

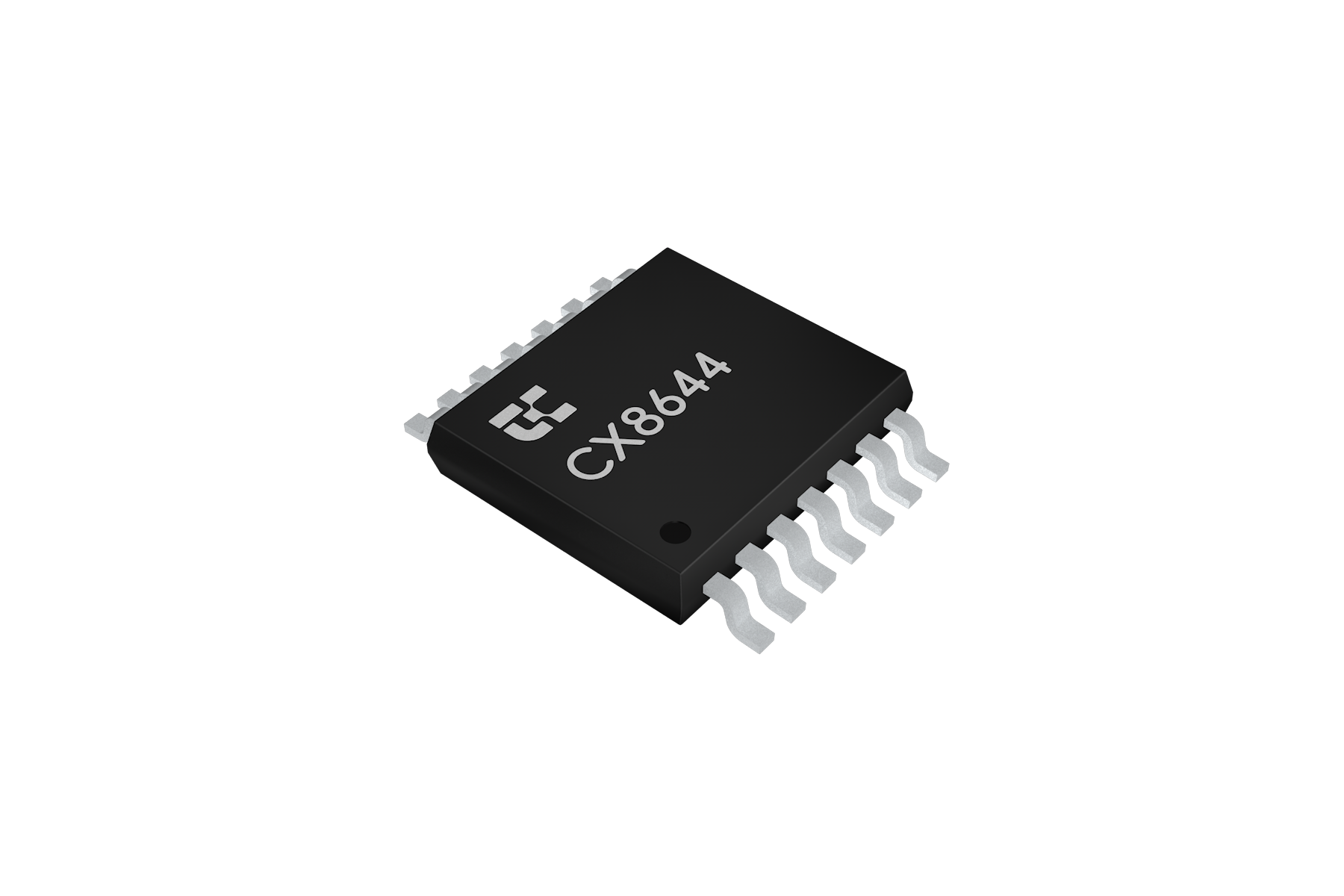

| CX8644 | 4 | 2.5 | 1.4-5.5 | 0.06 | 1.5 | 0.02 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX8651 | 1 | 5 | 1.4-5.5 | 0.12 | 1.5 | 0.04 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8651B | 1 | 5 | 1.4-5.5 | 0.12 | 1.5 | 0.04 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |

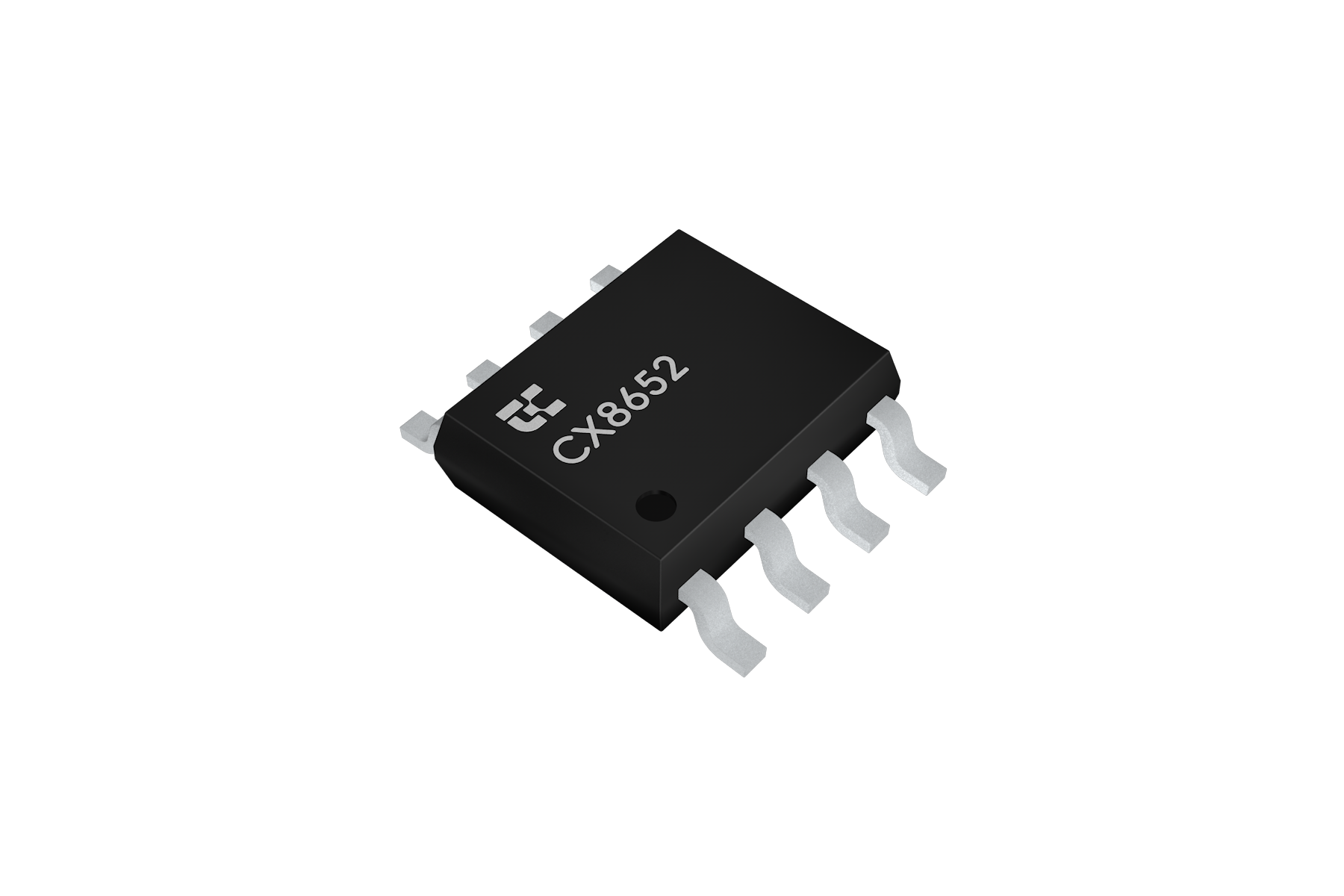

| CX8652 | 2 | 5 | 1.4-5.5 | 0.12 | 1.5 | 0.04 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |
| CX8654 | 4 | 5 | 1.4-5.5 | 0.12 | 1.5 | 0.04 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX8411 | 1 | 18 | 2.2-5.5 | 0.6 | 1.5 | 0.3 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8411B | 1 | 18 | 2.2-5.5 | 0.6 | 1.5 | 0.3 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8412 | 2 | 18 | 2.2-5.5 | 0.6 | 1.5 | 0.3 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |

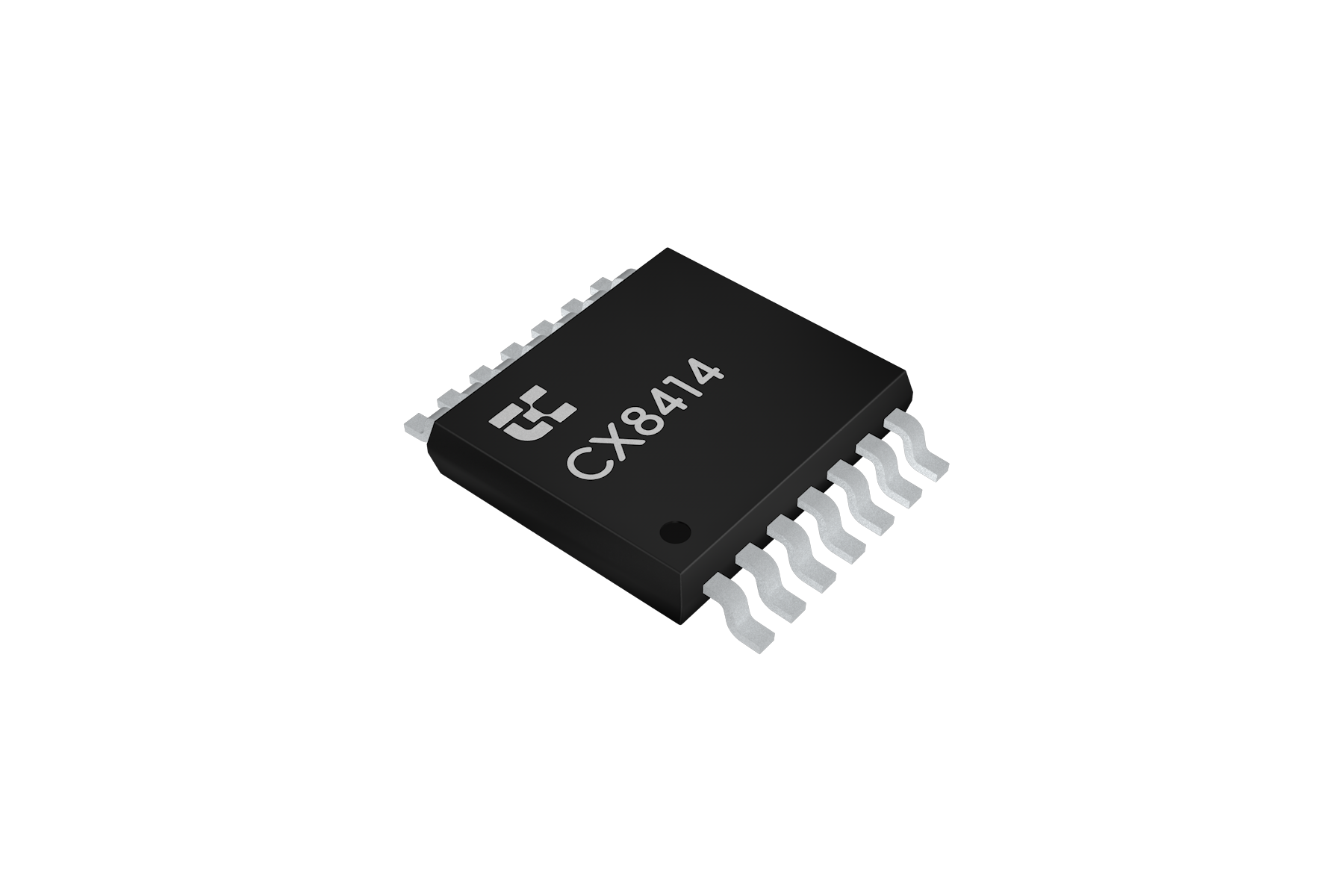

| CX8414 | 4 | 18 | 2.2-5.5 | 0.6 | 1.5 | 0.3 | 5 | 70 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX8421 | 1 | 35 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8421B | 1 | 35 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |

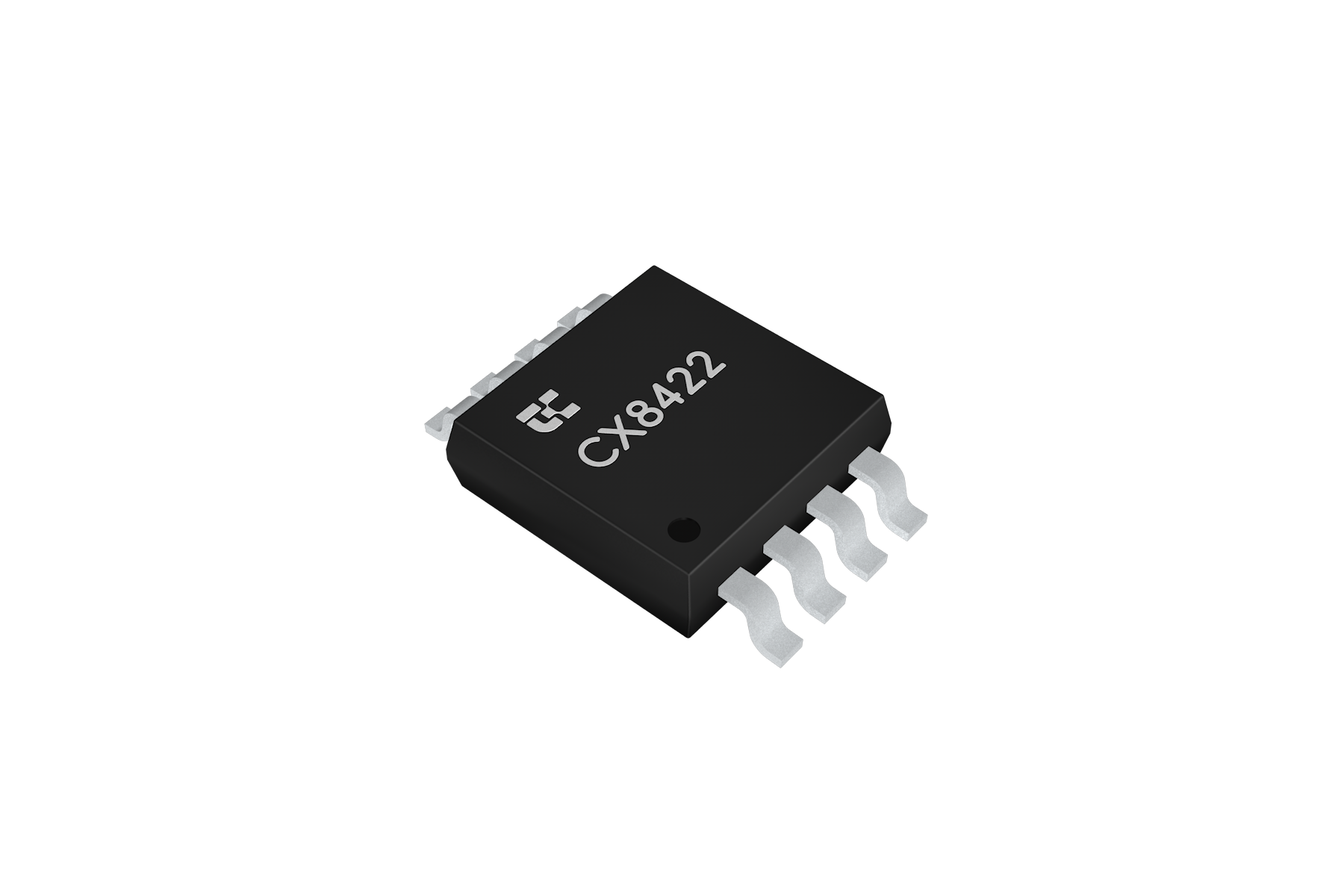

| CX8422 | 2 | 35 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |
| CX8424 | 4 | 35 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX8431 | 1 | 65 | 2.2-5.5 | 1.5 | 2.0 | 1 | 5 | 30 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8431B | 1 | 65 | 2.2-5.5 | 1.5 | 2.0 | 1 | 5 | 30 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX8432 | 2 | 65 | 2.2-5.5 | 1.5 | 2.0 | 1 | 5 | 30 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |
| CX8434 | 4 | 65 | 2.2-5.5 | 1.5 | 2.0 | 1 | 5 | 30 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
| CX321 | 1 | 36 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX321B | 1 | 36 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOT23-5 |
| CX358 | 2 | 36 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOP8,MSOP8 |
| CX324 | 4 | 36 | 2.2-5.5 | 1.2 | 2.0 | 0.7 | 5 | 50 | 1 | 100 | 85 | YES | -40~125 | SOP14,TSSOP14 |
